Abstract
Timing asynchronousness between macOS power management strategies and peripheral protocol handshakes is the primary cause of Thunderbolt 4 docking stations failing to wake external displays after system sleep. This phenomenon mainly manifests as external displays failing to receive video signals or window layout resets after the host recovers from low-power states. This paper analyzes the hardware causes of this issue from three dimensions: Thunderbolt protocol layer handshake timing, HPD (Hot Plug Detect) signal logic, and EDID data exchange mechanisms, and explores the firmware optimization solutions adopted by PURPLELEC at the manufacturing level.
I. Technical Definition of the Problem: Link Disconnection under S0ix State
Modern MacBook devices (especially models with Apple Silicon chips) widely adopt the S0ix (Modern Standby) power state to replace the traditional S3 sleep mode. In this state, the system strictly limits power supply and polling frequencies for external I/O interfaces.
When a user attempts to wake the device, a Thunderbolt 4 dock must complete the following two actions within an extremely short time window (typically milliseconds):
Physical Layer Recovery: Re-establishing physical connections for PCIe and DisplayPort lanes.
Protocol Handshake: Sending a valid connection signal to the host and completing peripheral enumeration.
Conventional docking solutions on the market often suffer from main controller wake-up latency exceeding the macOS detection threshold. This causes the system to misjudge that the device is disconnected, thereby stopping the video data stream. This is the root cause of the "black screen after wake-up" or "re-plugging required" phenomenon perceived by users.
II. Analysis of Core Failure Points
1. Timing Loss of HPD Signal
HPD (Hot Plug Detect) is a critical logic signal in display interfaces used to inform the host that "a device is connected." In standard logic, when the host sleeps, the dock usually follows into power-saving mode, causing the HPD signal to pull low. At the instant of wake-up, if the speed at which the dock restores a high level lags behind the macOS detection instruction, the graphics driver (GPU Driver) will determine the port as idle and consequently close the video output channel.
2. EDID Read Failure and Handshake Timeout
Even if a physical connection is established, macOS still needs to read the display's EDID (Extended Display Identification Data) to confirm resolution and refresh rate. If the Thunderbolt 4 dock fails to pass through the monitor's EDID information in time, or if data feedback times out due to the monitor's own slow wake-up, new systems like macOS Sequoia will execute protective strategies, forcibly cutting off signal output to prevent driver crashes.
III. Manufacturing-End Solutions: Active Signal Maintenance Logic
Aiming at the aforementioned protocol layer mismatches, PURPLELEC addresses compatibility issues during the B2B manufacturing and ODM R&D stages by refactoring underlying firmware logic, rather than relying on host-side driver updates.

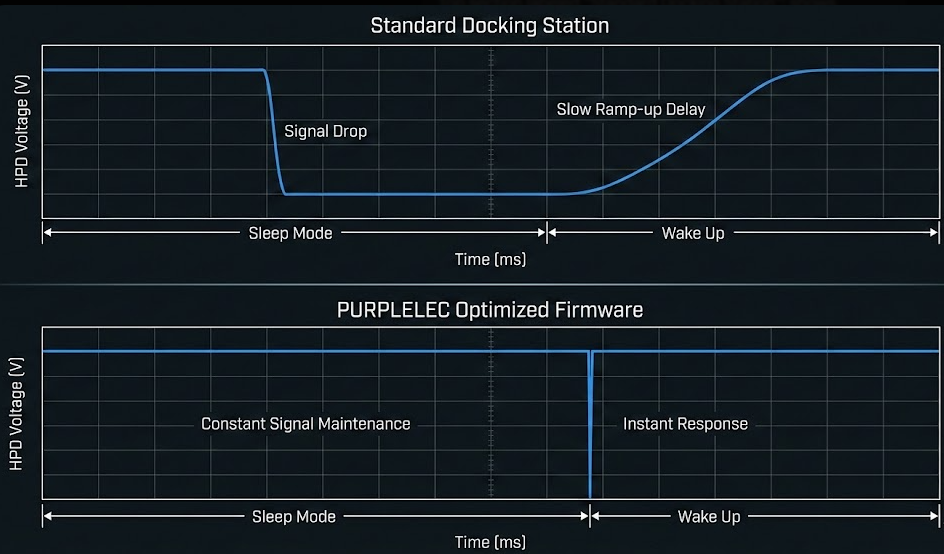

Scheme A: Virtual Link Maintenance
In the design of industrial-grade Thunderbolt docks, an independent low-power control unit is introduced. When it detects the host entering sleep state, the dock does not completely cut off communication with the host but maintains a "ghost connection" state. This mechanism ensures the HPD signal remains continuously Asserted (high level). When the user wakes the Mac, the system does not need to go through the complete handshake initialization process, thereby achieving millisecond-level video stream recovery, known as "instant wake-up."

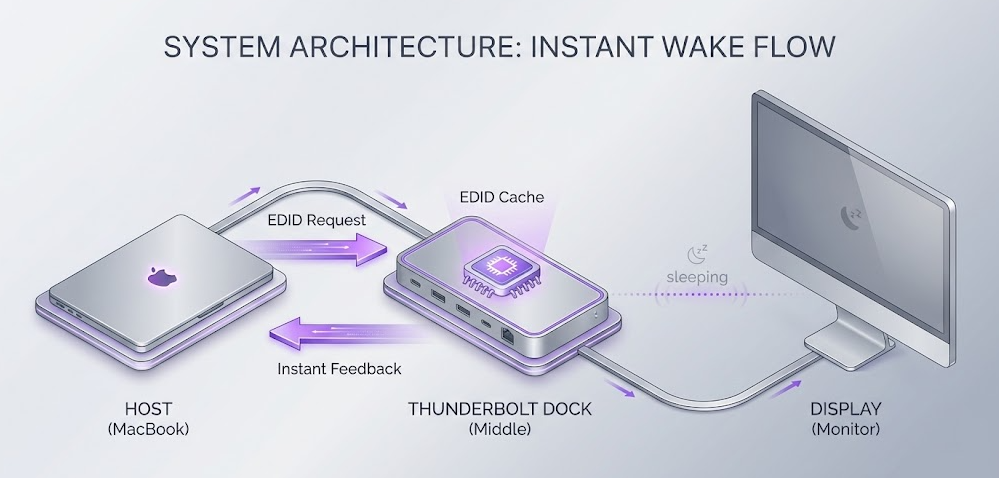

Scheme B: EDID Emulation and Caching
To circumvent issues with slow external monitor response, high-end docking solutions incorporate EDID caching mechanisms.
Acquisition: Upon initial connection, the dock controller automatically reads and stores the monitor's EDID data.
Emulation: When the host wakes and queries, the dock directly feeds back the cached EDID data from its internal chip, independent of real-time response from the monitor. This "spoofing" mechanism ensures macOS instantly obtains correct display parameters regardless of how old or unresponsive the attached monitor is, thoroughly eliminating "screen drop" or window disorder issues.
IV. Robustness Verification for macOS Sequoia
As macOS Sequoia and subsequent versions tighten security strategies for Thunderbolt interfaces, compliance requirements for peripherals are becoming increasingly strict. Products without official Intel certification or with outdated firmware logic are highly prone to connection instability in new systems.
In the supply chain selection process, the key to distinguishing between consumer-grade and industrial-grade Thunderbolt 4 docks lies in whether they possess underlying protocol adaptation capabilities tailored for the Apple ecosystem. PURPLELEC's R&D test data shows that devices utilizing the aforementioned active signal management technologies achieved a 0% video signal loss rate in 100 consecutive S0ix wake-up tests, and completely retained multi-screen window arrangements from before sleep.
Conclusion
"Failure to light up the screen upon wake-up" is not an inevitable technical black hole, but a timing deviation due to friction between hardware logic and system strategies.
For brand owners and purchasers seeking high-reliability connectivity solutions, understanding this underlying mechanism is crucial. Selecting a manufacturer with deep firmware development capabilities means resolving user compatibility anxieties at the source, ensuring the product provides a consistent experience of "seamless connection" within the macOS ecosystem. PURPLELEC will remain committed to the deep analysis and application of the Thunderbolt protocol, providing global customers with connectivity solutions that meet rigorous commercial standards.
