Why Your Dock Station USB-C Deserves More Scrutiny Than You're Giving It
A dock station USB-C sits at the center of every modern workstation — quietly routing power, display signals, and data between a laptop and its peripherals. Most users treat it as a passive adapter. It isn't. Under a full load — two 4K monitors active, a USB 3.2 drive writing continuous footage, PD charging engaged — a dock is managing simultaneous bidirectional data streams across multiple protocol lanes. That's a thermally and electrically demanding task, and not all hardware handles it equally.
Video editors pulling 4K RAW from CFexpress cards, network engineers running dual-screen terminal sessions, or motion designers rendering while reviewing on an external display — these users feel the difference between a well-engineered dock and a cheaply built one within hours. Sometimes minutes.
Understanding the Real Risks: What Goes Wrong Inside an Overloaded Dock
Thermal Throttling and Its Downstream Effects
The most misunderstood failure mode in a dock station USB-C isn't a dead port. It's thermal throttling — the point at which a controller chip reduces clock speed and transfer bandwidth to prevent itself from exceeding safe operating temperatures. You won't see an error message. You'll see a 10Gbps drive suddenly behaving like a USB 2.0 device. You'll see frame drops on a display that was rendering perfectly an hour ago.
This happens because budget docks often rely on plastic enclosures with minimal heat-dissipation pathways. The controller chip — responsible for managing DisplayPort Alt Mode, USB Power Delivery negotiation, and data multiplexing simultaneously — generates meaningful heat. Trap that heat, and performance degrades predictably.
Sustained high temperatures create a compounding problem:
∙ Battery cycles accelerate on connected laptops, reducing long-term capacity
∙ Solder joints on internal PCB connections fatigue over time
∙ Physical housing can warp, compromising port alignment and contact integrity
Data Corruption: The Mechanism Behind "Unexpected Shutdowns"
When a dock thermally throttles mid-transfer, the consequences aren't just slow speeds. An interrupted write cycle — particularly to storage formatted with journaling file systems like APFS or NTFS — can leave the file system metadata in an inconsistent state. The result is corrupted files that appear intact until you try to open them.
For a filmmaker transferring 200GB of dailies after a shoot, or an audio engineer archiving session files, this isn't a theoretical risk. It's a workflow-ending event. The fix isn't just better cables. It's hardware engineered to sustain rated performance under continuous load.
Security Considerations for Shared and Public Environments
A lower-profile risk: USB-C's Power Delivery and data channels operate over the same physical connector. A malicious device disguised as a peripheral can attempt to negotiate data access through the dock's upstream port. In corporate environments or co-working spaces, connecting a dock to an unknown or unvetted USB-C device introduces a vector that bypasses most endpoint security software.
Firmware-level protections — present in quality dock controllers — restrict unauthorized device enumeration. This is one reason controller chip pedigree matters more than port count on a spec sheet.
Best Practices for Maximizing Dock Longevity and Performance
These aren't warnings — they're the habits that engineers and power users develop after running high-performance docks under demanding conditions.
Thermal Management: Passive Cooling Matters More Than You Think
∙ Prioritize aluminum enclosures. Aluminum's thermal conductivity (~200 W/m·K) versus ABS plastic (~0.2 W/m·K) is not a marginal difference — it's three orders of magnitude. A well-designed aluminum shell acts as a passive heat spreader for the internal controller.
∙ Give the dock airflow. Even passive cooling requires convection. Placing a dock under a stack of documents or in a closed drawer eliminates its ability to shed heat.
∙ Monitor surface temperature during heavy loads. A dock that becomes uncomfortable to touch under full load is operating outside its thermal design envelope.
Port Hygiene and Physical Maintenance
Dust ingress into USB-A and USB-C ports creates two problems: reduced contact reliability and impeded airflow through the chassis. Compressed air cleaning every 60–90 days is sufficient for most desktop environments. Higher-dust environments (studios, workshops) warrant more frequent intervals.
Workload Management for Sustained Sessions
Extended video exports, large file migrations, or overnight backup operations are precisely when dock cooling matters most. If your workflow regularly involves multi-hour continuous transfers, a dock with an active thermal design or substantial aluminum mass is not optional — it's a prerequisite.
Planned breaks in continuous operation aren't just good for the dock; they're good for the host laptop's thermal envelope too.

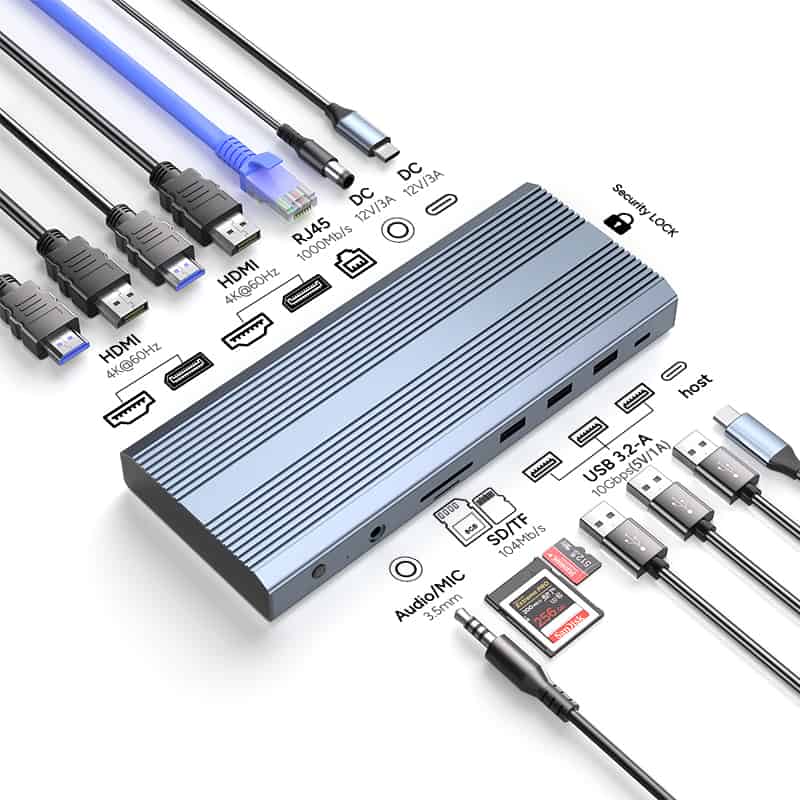

Hardware That Addresses These Problems Directly: PURPLELEC 14-in-1 USB-C Dock Station
When the technical requirements are clear — sustained 4K dual-output, high-speed data transfer, reliable power delivery, and thermal stability under load — the hardware selection becomes more straightforward. The PURPLELEC 14-in-1 Dual 4K60Hz Dock Station USB-C was designed around exactly these constraints.
Controller Architecture: GL3590 Chip
The GL3590 is a USB 3.2 Gen 2×2 hub controller supporting up to 40Gbps aggregate bandwidth — a specification that matters when multiple high-throughput devices are active simultaneously. Unlike single-controller designs that must arbitrate bandwidth between display output and data transfer, the GL3590's architecture allows the dock to maintain rated speeds across all active ports without the bandwidth contention that triggers thermal throttling cascades in lower-spec hardware.
For practical context: transferring 4K ProRes footage from a USB 3.2 Gen 2 SSD while simultaneously driving two 4K monitors at 60Hz is the kind of mixed workload where controller headroom determines whether you finish the job on schedule.
Port Configuration: 14 Interfaces, Engineered for Production Workflows
| Interface |
Specification |
Primary Use Case |
| HDMI × 2 |
4K @ 60Hz |
Dual external monitor setup |
| DisplayPort × 2 |
4K @ 60Hz |
Professional display / color-accurate panels |
| USB 3.1 × 3 |
10 Gbps per port |
High-speed storage, peripherals |
| PD Charging |
100 W |
Full laptop charging under load |
| RJ45 Ethernet |
1000 Mbps |
Stable wired network connection |
| SD + TF Card Reader |
104 MB/s |
Camera media ingestion |
| 3.5mm Audio |
Mic + headphone |
Headset / audio interface |
| DC Power Input |
12V |
Dedicated power path |
PD 100W is worth noting specifically. Many docks advertise USB-C charging but deliver 60–65W — insufficient to charge a 16-inch laptop under sustained CPU/GPU load. 100W ensures the host machine maintains charge even during intensive workflows, eliminating the gradual battery drain that degrades performance over a long session.
Thermal Design: Aluminum Alloy Construction
The chassis is full aluminum alloy — not aluminum-accented plastic. The enclosure doubles as a heat spreader for the internal controller and power regulation circuitry. Under extended operation driving dual 4K outputs and active USB 3.1 transfers, surface temperatures remain within a range that indicates the thermal design is working as intended, rather than accumulating heat that triggers protection circuits.
Why the Dock Station USB-C Spec Sheet Rarely Tells the Full Story
Port count is easy to market. Controller headroom, thermal design, and firmware security are harder to photograph. The difference between a high-performance USB-C dock that sustains rated specifications for three years of daily use and one that begins throttling after six months of moderate use isn't always visible at purchase time.
The indicators worth checking before buying any dock station USB-C:
Controller chip identification (GL3590, Intel Thunderbolt controllers, and Realtek RTL8153 for Ethernet are established benchmarks)
∙ Enclosure material (aluminum vs. plastic)
∙ PD wattage — confirm it covers your laptop's rated consumption under load
∙ Dual-display output method (DisplayPort MST vs. independent streams affect resolution ceiling)
∙ Certification marks relevant to your region (CE, FCC, RoHS)
Final Assessment
A dock station USB-C is load-bearing infrastructure for any multi-monitor or high-throughput workstation. Treating it as a commodity purchase tends to surface its limitations at the worst possible moment — during a deadline, a live session, or a critical transfer.
The PURPLELEC 14-in-1 dock addresses the failure points that matter: GL3590 controller headroom for 40Gbps aggregate bandwidth, PD 100W for sustained laptop performance, dual 4K60Hz independent display outputs, and an aluminum chassis that manages heat passively. For professionals whose productivity genuinely depends on what's running through that dock, these specifications translate directly into reliability.
Explore the full specification sheet and compatibility details at purplelec.com.
