HDMI Extenders in the High-Definition World: A Comprehensive Analysis of Functions, Types, and Appli
In today's era of high-definition video, the length limitation of standard HDMI cables often poses a problem when connecting devices such as game consoles, DVD players, or computers to TVs or projectors at greater distances. HDMI extenders serve as a technical solution to overcome this limitation, enabling HDMI signal transmission over longer distances than standard cables.
This article will delve into the detailed functions of HDMI extenders, covering their working principles, various types, and practical applications. HDMI extenders are available in both wired and wireless forms to meet different distance requirements and configurations based on user needs.
The Challenge and Solution of Long-Distance HDMI Signal Transmission
HDMI signals tend to attenuate during long-distance cable transmission. Although active HDMI cables can cover longer distances, they still have limitations. HDMI extenders cleverly bypass this limitation by converting HDMI signals into a format that can be transmitted over Ethernet cables and then converting them back to HDMI format at the receiving end.
Through this conversion process, HDMI signals can be extended to one or more displays over distances longer than those permitted by HDMI standards, typically up to several hundred feet, without any loss of video resolution or frame rate. Essentially, HDMI extenders offer a versatile and technically sophisticated solution for long-distance HDMI signal extension, ensuring that visual and audio quality are maintained, whether for home theaters, office presentations, or digital signage in commercial environments.
The Role and Working Principle of HDMI Extenders
The primary role of HDMI extenders is to overcome the distance limitations of standard HDMI cables. When the distance between an audio/video source (such as a Blu-ray player, game console, or computer) and a display device (such as a TV or projector) exceeds the range of passive or active HDMI cables, HDMI extenders become indispensable. Their core purpose is to ensure that high-definition audio and video signals can be transmitted over longer distances than those allowed by HDMI cables without any loss of quality.
The working principle of HDMI extenders is as follows: One end receives an HDMI connection from the signal source and then uses a balun (balance-unbalance converter) to convert it into an Ethernet connection. Subsequently, users can use a single or multiple Cat 5e or Cat 6 Ethernet cables for long-distance transmission and connect them to a receiver at the other end. The receiver then converts the signal back into an HDMI connection for connection to the display. The conversion process depends on the type of extender used. Common types include extenders that use CAT5/6 cables, coaxial cables, fiber optic cables, and even wireless technology. Each type has its unique advantages. Wired extenders typically offer more stable connections over longer distances, while wireless extenders are more flexible and easier to install.
Advantages and Application Scenarios of HDMI Extenders
Using HDMI extenders offers numerous benefits and plays a crucial role in various setups. Firstly, they enable users to freely set up AV systems in large residences, offices, or commercial spaces without worrying about the length limitations of HDMI cables. This functionality is particularly useful in scenarios where the source device needs to be hidden or placed far from the display, such as in home theaters, digital signage applications, or situations requiring secure or remote placement of equipment.
Secondly, HDMI extenders ensure the integrity of audio and video signals during long-distance transmission, thereby significantly enhancing the quality of presentation and entertainment setups. This is crucial for creating immersive experiences in home theaters, achieving clear and effective communication in corporate or educational environments, and presenting engaging visual effects in retail or hospitality settings.

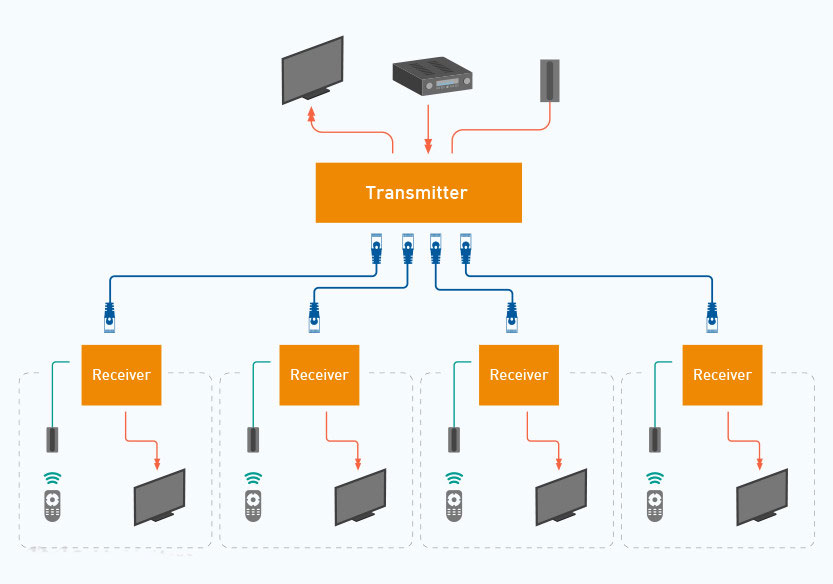

In practice, HDMI extenders convert the HDMI signal from the source into an Ethernet signal through a balun, allowing it to be transmitted over longer distances using one or multiple CAT 5e or Cat 6 Ethernet cables and then converted back into an HDMI signal for transmission to the display. These extenders can be connected directly via Ethernet cables or through unmanaged network switches, enabling expansion by adding extenders and splitters to connect multiple displays. Some models can even output a single signal source to four independent displays, greatly enhancing the flexibility of signal distribution.
Additionally, HDMI extenders feature a notable capability of transmitting infrared (IR) remote control signals, allowing users to control the video source as if it were directly connected to the display via a standard HDMI interface. This functionality provides users with great convenience, enabling seamless interaction with the source content even when positioned at the display.
HDMI Extenders vs. Active HDMI Cables
Most HDMI cables used to connect TVs with Blu-ray players, game consoles, or laptops are passive cables. These cables can extend a few feet without the risk of signal attenuation. However, if you want to extend the connection by 10 feet or more, especially using newer standards like HDMI 2.1, active HDMI cables are required.
Active HDMI cables use signal boosters to enhance the HDMI signal, enabling it to travel farther along longer cables without issues. Nevertheless, the maximum transmission range of HDMI 2.0 cables is approximately 100 feet, while that of active HDMI 2.1 cables is only 25 feet.
In contrast, HDMI extenders excel in handling ultra-high-definition 4K video and standard 1080p video transmission over long distances. They can handle ultra-high-definition 4K video over distances exceeding 100 feet (about 30 meters) and standard 1080p video over distances exceeding 300 feet (about 90 meters) without any concern for signal quality. Moreover, HDMI extenders support Dolby True HD audio and DTS-HD Master lossless audio without the need for additional audio cables.
What's more, HDMI extenders can distribute signals among multiple displays, making them not only an excellent solution for long-distance transmission from the source to a TV but also highly suitable for duplicating content across multiple displays. This is particularly convenient for digital signage, classrooms, conference rooms, displaying game footage on larger public screens, or mirroring sports footage in bars.
If users want to expand the connection of HDMI extenders to more displays in the future, most splitters also support the addition of more displays through additional receivers. However, it should be noted that the more displays there are, the greater the distance between the signal source and the displays and the number of conversions, increasing the likelihood of signal attenuation.
Types of HDMI Extenders: Wired vs. Wireless
HDMI extenders mainly come in two types: wired and wireless, each catering to different needs based on the setup.
Wired HDMI extenders are renowned for their reliability and use physical cables to connect the signal source to the display. Ethernet HDMI extenders use CAT5e or CAT6 cables to efficiently extend HDMI signals up to 100 meters, making them ideal for large spaces such as convention centers and schools. Typically, these products require dedicated network infrastructure. Using shielded CAT6A cables usually enables longer transmission distances or use in areas with high RFI/EMI.
Another wired option is to use coaxial cable extenders for HDMI signal transmission, which are highly suitable for long-distance transmission and can utilize existing coaxial cables within buildings, reaching distances of up to 300 meters. This option is particularly useful when it is not feasible to lay Ethernet cables or carry out large-scale rewiring.
Wireless HDMI extenders, on the other hand, eliminate the hassle of cables, providing users with great convenience. Although they may face interference issues, recent technological advancements have significantly improved their performance. Extenders using Wi-Fi and Bluetooth are suitable for home use, enabling the transmission of high-definition content without cables and offering a clean setup.
For wireless high-quality video transmission, WHDI (Wireless Home Digital Interface) extenders are highly practical. They operate at the 5GHz frequency, are less susceptible to interference, and can transmit 1080p video content up to 30 meters in the same room, making them ideal for home theaters and gaming devices.
Each type of HDMI extender has its unique advantages, whether it's the stable performance and wider coverage of wired extenders or the easy installation and clean appearance of wireless extenders. The choice of extender depends on the specific circumstances of the user's audio and video setup, as well as their priorities—whether it's signal stability and coverage or ease of installation and minimalism.
Functions of HDMI Extenders: Quality and Range
The transmission range of HDMI extenders can significantly exceed the limitations of standard HDMI cables, which are typically restricted to around 10 meters (33 feet) before signal attenuation occurs. Wired HDMI extenders using Ethernet or coaxial cables can reliably extend HDMI signals up to 100 meters (328 feet), and in some cases, even up to 300 meters (984 feet) without any loss of quality. Wireless HDMI extenders, while offering more flexible and cleaner setups, typically support shorter distances, ranging from around 10 meters (33 feet) to 30 meters (100 feet), depending on the technology and environment.
The maximum connection range depends on the HDMI extender used, the required resolution and frame rate, the number of displays to be connected, and the category of the Ethernet cable used for the connection. Some HDMI extenders support 4k 30Hz connections with a maximum distance of approximately 130 feet and 1080p connections with a maximum distance of up to 230 feet, while others support a single 1080p display with a maximum distance of nearly 330 feet.
To ensure a robust signal over the longest distances, users need to use the highest quality cables possible, with Cat 6 cables being the optimal choice for most commercial HDMI extenders. Additionally, purchasing cables with foil wrapping and good shielding is crucial. If users plan to run cables through walls, it is essential to choose cables that comply with such wiring standards to avoid increasing the risk of fire.
In terms of transmission quality, HDMI extenders are designed to ensure the integrity of long-distance HDMI signals. Most extenders support full HD (1080p), 4K, and even 8K resolutions, ensuring that high-definition content is transmitted without any impact. Furthermore, they can handle various formats, including 3D video and multi-channel audio (such as Dolby TrueHD and DTS-HD Master Audio), providing users with an immersive audio-visual experience.
Bandwidth is crucial for the transmission quality of HDMI extenders, especially at high resolutions. Extenders need to support sufficient bandwidth to handle the massive amounts of data required for 4K and 8K content. Wired extenders typically offer greater bandwidth, thereby better supporting high-resolution video and fast refresh rates for smoother video playback and lower latency.
Signal stability is another key factor. Wired extenders are generally less susceptible to interference and can provide more stable signals over long distances. Wireless extenders, while highly convenient, can sometimes be affected by interference from other wireless devices and obstacles, impacting signal quality.
Additionally, some HDMI extenders feature Power over Cable (PoC) and Power over Ethernet (PoE) capabilities, allowing the extenders to be powered through the transmission cables themselves. This means that only one end (either the transmitter or the receiver) of the extender pair needs to be connected to a power source, simplifying installation and reducing clutter. PoC is particularly useful in environments where power outlets are scarce or inconveniently located relative to the signal source or display device.
Key Considerations When Choosing an HDMI Extender
Wired vs. Wireless Networks: Which Reigns Supreme?
