The Professional’s Guide to Thunderbolt Video Capture Cards

　　A Thunderbolt video capture card represents a protocol-level evolution rather than a simple interface upgrade. Unlike conventional USB-based capture devices, Thunderbolt-based solutions operate as external PCIe endpoints, exposing capture hardware directly to the host system through PCIe tunneling.

　　This architectural distinction fundamentally changes how high-bandwidth video data is transported, buffered, and processed, particularly in professional acquisition workflows requiring deterministic latency and sustained throughput.

　　Why Bandwidth Is Not the Only Metric

　　The performance difference between USB and Thunderbolt capture devices is often framed as a bandwidth comparison. This view ignores how data reaches system memory.

　　Thunderbolt encapsulates PCIe transactions over a cable, allowing the capture card to appear as a native PCIe device. Memory-mapped I/O, direct DMA transfers, and hardware interrupts behave similarly to an internal expansion card.

　　USB capture devices operate through a host controller that schedules isochronous transfers. Packet scheduling, bus arbitration, and host-side buffering introduce latency variance and CPU overhead. Even when theoretical bandwidth is sufficient, the scheduling model can become a bottleneck under sustained video workloads.

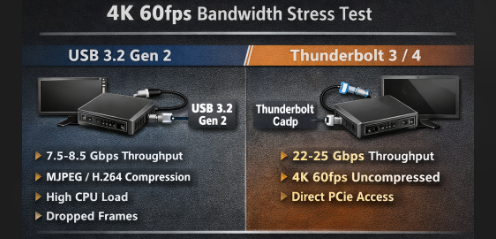

　　Thunderbolt vs USB Capture Card: Bandwidth Stress Test for 4K 60fps

　　Raw Data Rate Calculation

　　A 4K 60fps YUV 4:4:4 signal at 10-bit depth produces:

• 　　Resolution: 3840 × 2160

• 　　Frame rate: 60 fps

• 　　Bits per pixel: 30 bits (10-bit per channel RGB equivalent)

　　Required throughput:

　　3840 × 2160 × 60 × 30 ≈ 14.9 Gbps raw video payload

　　Including blanking intervals and protocol overhead, real-world requirements exceed 18–20 Gbps.

　　USB 3.2 Gen 2 Behavior

　　USB 3.2 Gen 2 offers a nominal 10 Gbps link rate. Effective payload throughput typically ranges from 7.5–8.5 Gbps after encoding overhead and host controller scheduling.

　　Consequences for uncompressed capture:

• 　　Mandatory compression (MJPEG, H.264, or proprietary codecs)

• 　　Increased CPU utilization due to decompression pipelines

• 　　Higher risk of buffer underruns and dropped frames

　　Thunderbolt 3/4 Behavior

　　Thunderbolt 3 and Thunderbolt 4 provide a 40 Gbps full-duplex link, with PCIe tunneling exposing up to four PCIe Gen 3 lanes.

　　Effective payload throughput commonly exceeds 22–25 Gbps, sufficient for uncompressed 4K 60fps YUV 4:4:4 acquisition.

　　This margin enables:

• 　　True uncompressed pipelines

• 　　Stable frame pacing

• 　　Reduced dependency on host CPU scheduling

　　4K Uncompressed Video Capture: System-Level Implications

　　Uncompressed acquisition changes system architecture requirements.

　　Thunderbolt capture cards transfer frames via DMA directly into system memory. The host CPU primarily orchestrates buffers rather than decoding compressed streams. This reduces interrupt load and minimizes context switching.

　　USB capture devices often rely on software-based decompression, which introduces non-deterministic latency and increases thermal load on mobile platforms.

　　In broadcast environments, deterministic frame arrival is critical for downstream switching, synchronization, and encoding pipelines.

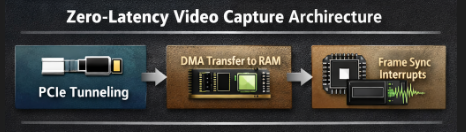

　　Zero-Latency Acquisition: Underlying System Architecture

　　Low latency in Thunderbolt capture devices is a consequence of PCIe tunneling.

　　Key mechanisms:

• 　　Memory-mapped frame buffers

• 　　Direct DMA transfers to system RAM

• 　　Hardware interrupts synchronized with frame boundaries

　　USB capture devices depend on isochronous transfers and host-side buffering queues. Variance in microframe scheduling leads to jitter, which accumulates in live production workflows.

　　In multi-source switching scenarios, even sub-frame latency inconsistencies can cause synchronization drift.

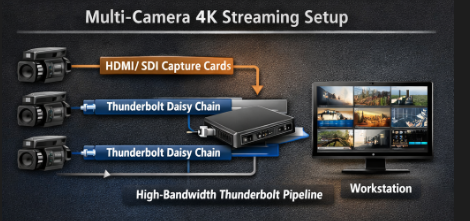

　　Multi-Camera 4K Streaming System Topology

　　Thunderbolt supports daisy chaining, allowing multiple capture devices to share a single Thunderbolt port. Each device operates as a PCIe endpoint with negotiated bandwidth allocation.

　　A multi-camera topology can be constructed as:

• 　　Camera → HDMI/SDI capture card

• 　　Capture card → Thunderbolt chain

• 　　Host workstation with sufficient PCIe lanes

　　USB-based topologies rely on hubs and shared host controllers. Aggregate throughput collapses when multiple high-bitrate devices share the same root hub.

　　PCIe lane availability on laptops remains a limiting factor. Many mobile platforms multiplex Thunderbolt controllers with internal devices, reducing available lanes under sustained load.

　　Compatibility Pitfalls in Procurement

　　Active vs Passive Thunderbolt Cables

　　Passive cables typically support full 40 Gbps bandwidth up to 0.8 m. Active cables extend reach but require retimers and firmware compatibility. Incorrect cable selection can silently reduce link speed.

　　Host Controller Firmware

　　Thunderbolt performance depends on host controller firmware and BIOS configuration. Security modes, DMA protection, and OS drivers affect device enumeration and throughput.

　　Platform Certification

　　Apple M-series platforms integrate Thunderbolt controllers on-die, offering predictable behavior. Intel Evo-certified systems vary depending on OEM firmware implementation and PCIe lane allocation.

　　Key Considerations for Bulk Sourcing

　　Thermal Design

　　Sustained 40 Gbps throughput generates significant heat in retimers and capture ASICs. Passive enclosures require careful thermal path design to prevent throttling.

　　Firmware and Driver Lifecycle

　　Professional capture deployments require long-term driver stability. Firmware update policies and SDK availability should be evaluated during OEM/ODM sourcing.

　　Power Delivery Constraints

　　Bus-powered Thunderbolt capture devices are limited by the host’s port power budget. High-end multi-channel capture cards often require auxiliary power input.

　　Conclusion

　　A Thunderbolt video capture card fundamentally changes the acquisition pipeline by exposing capture hardware as a PCIe device rather than a USB peripheral. For 4K 60fps uncompressed workflows, the combination of PCIe tunneling, deterministic DMA transfers, and sufficient sustained throughput provides measurable advantages in latency stability and frame integrity.

　　For system integrators and professional content production environments, Thunderbolt-based acquisition should be evaluated not as an interface upgrade, but as a system architecture decision with implications for topology design, thermal engineering, and firmware lifecycle management.
