Product Description

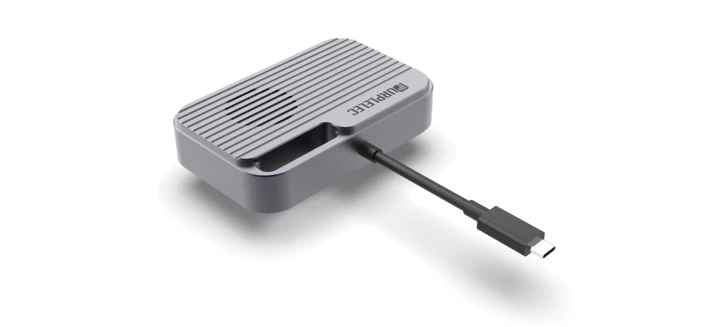

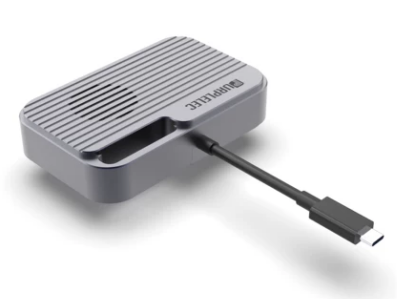

The PURPLELEC TX001M1 is a next-generation Thunderbolt 5 M.2 NVMe portable SSD engineered for distributors, system integrators, and brand owners targeting the high-performance external storage market. Built around an Intel-certified Thunderbolt 5 controller and a full aluminum thermal chassis, The TX001M1 ships with a pre-installed high-performance M.2 NVMe SSD, delivering desktop-class portable storage in a single ready-to-deploy package — available in 1TB and 2TB configurations for video production, AI dataset transfer, large-format design, and enterprise data mobility workflows.
Thunderbolt 5 delivers 80Gbps connection bandwidth — twice the throughput of Thunderbolt 4 — enabling sustained read and write speeds suitable for 8K video editing, real-time RAW photo workflows, and large-scale data migration. The TX001M1 maintains full backward compatibility with Thunderbolt 4 and Thunderbolt 3 hosts, ensuring it serves both bleeding-edge and legacy workstations across your customer base.
Designed for B2B partnerships, the TX001M1 platform is delivered with comprehensive OEM/ODM customization options, certification documentation (FCC, CE, RoHS, REACH), private-label packaging, and tiered project-based pricing for distributor and brand-owner partnerships.
★ Pre-configured with built-in 1TB or 2TB NVMe SSD — ready-to-ship for distributor and retail partners.
| Specification | Detail |
| Model | TX001M1 |
| Host Interface | 1× Thunderbolt 5 (80Gbps) |
| Built-in SSD | 1× M.2 NVMe SSD (Pre-installed, 1TB / 2TB) |
| Supported Keys | M-Key, B&M-Key |
| Protocol | NVMe (PCIe) |
| Capacity | 1TB or 2TB (pre-installed) |
| Chassis Material | Full Aluminum Alloy (CNC) |
| Cooling | Passive (Aluminum Heatsink) |
| Power | Bus-Powered |
| Installation | Tool-Free |
| OS Compatibility | Windows 10/11, macOS, Linux |
| Available SKUs | TX001M1-1TB, TX001M1-2TB |
OEM / ODM Customization
PURPLELEC offers full OEM/ODM customization for the TX001M1 platform:
● Private Label: Custom logo, color, packaging design
● Hardware: Alternate connector and chassis options
● Firmware: Custom LED behavior, S.M.A.R.T. extensions
● Certifications: FCC, CE, RoHS, REACH + regional certs on request
● Accessories: Custom cable lengths, sleeves, retail packaging
● MOQ: Flexible for first-time partners; tiered volume pricing
● Lead Time: Samples in 7 days; mass production in 25–35 days
● Warranty: Standard 1-year; extended terms available for OEM
What's in the Box
● 1× PURPLELEC TX001M1 Thunderbolt 5 Portable SSD (1TB or 2TB pre-installed)
● 1× Thunderbolt 5 Cable (OEM customizable length)
● 1× User Manual
● Custom OEM packaging on request
FAQ
Q1: What is the maximum transfer speed of the TX001M1?
A1: The TX001M1 delivers up to 80Gbps connection speed via Thunderbolt 5 host interface. Real-world transfer speeds depend on the installed M.2 NVMe SSD's own performance, with high-end Gen4 NVMe drives capable of saturating 6,000+ MB/s sustained throughput.
Q2: Can OEM customers customize the pre-installed SSD?
A2:Yes. While standard SKUs ship with our default high-performance NVMe SSD, OEM customers can request custom configurations including alternate SSD brands and specific NVMe controllers. SATA M.2 drives are not supported. Contact our sales team for tested compatibility lists.
Q3: Is the TX001M1 backward compatible with older Thunderbolt versions?
A3: Yes. The TX001M1 is fully backward compatible with Thunderbolt 4 and Thunderbolt 3 hosts, automatically negotiating the highest supported speed for each connection. Note: The TX001M1 is designed exclusively for Thunderbolt hosts and does not operate over USB-only ports.
Q4: Does the TX001M1 require any drivers or software?
A4: No. The TX001M1 is plug-and-play across Windows 10/11, macOS, and Linux on systems with Thunderbolt 5, Thunderbolt 4, or Thunderbolt 3 ports. No driver installation is required.
Q5: Can the TX001M1 be customized with our brand logo and packaging?
A5: Yes. PURPLELEC offers full OEM/ODM customization including private label, custom logo printing, color matching, packaging design, and bundled accessory configuration. Contact our sales team for samples and project-based pricing.
Q6: What is the minimum order quantity (MOQ) for OEM/ODM orders?
A6: MOQ is flexible for first-time partners and varies based on customization scope. We support small-batch sample orders for evaluation and offer tiered volume pricing for established distributor partnerships. Please contact our sales team for specific quotations.
Q7: What certifications does the TX001M1 carry?
A7: The TX001M1 platform is Intel Thunderbolt 5 Certified and supports FCC, CE, RoHS, and REACH by default. Additional regional certifications (e.g., PSE for Japan, KC for Korea, BIS for India) can be added based on your target market requirements.
Q8: How does the TX001M1 handle heat during sustained high-speed transfers?
A8: The full aluminum CNC chassis acts as a passive heatsink across the entire surface, ensuring stable sustained performance without thermal throttling during prolonged transfer workloads. No active cooling is required.
Q9: What capacities are available for the TX001M1?
A9: The TX001M1 ships pre-configured with a built-in NVMe SSD in two capacity options — 1TB and 2TB — ready for distributor and retail channels with no separate SSD sourcing required. Custom capacities and SSD brand selection are available for OEM orders. Contact our sales team for full configuration options.
