Docking Station

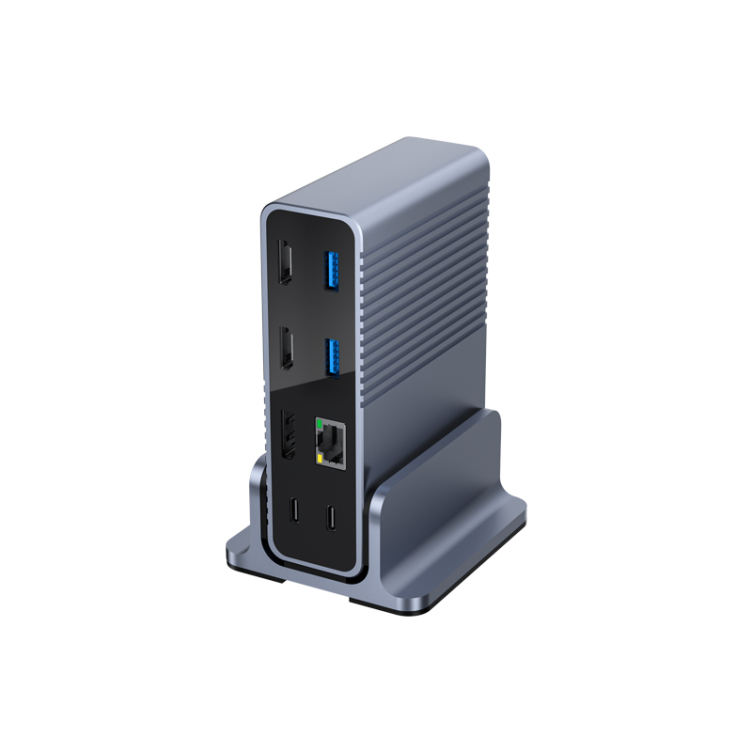

PD 100W Full Multifunction USB C Docking Station

Item No.: PEC-DS015
•Corrugated housing
•Power Delivery charger 80W
•HDMI video output Up to 4K@60Hz
•Transfer data between SD/TF card up to 104MB/s
•Gigabit Ethernet up to1000 Mbps
  • Color:
    Gray
  • MOQ:
    Sample
    300
    500
Description
Description
USB C Docking Station

PURPLELEC Manufacturer Best Laptop USB-C Docking Station

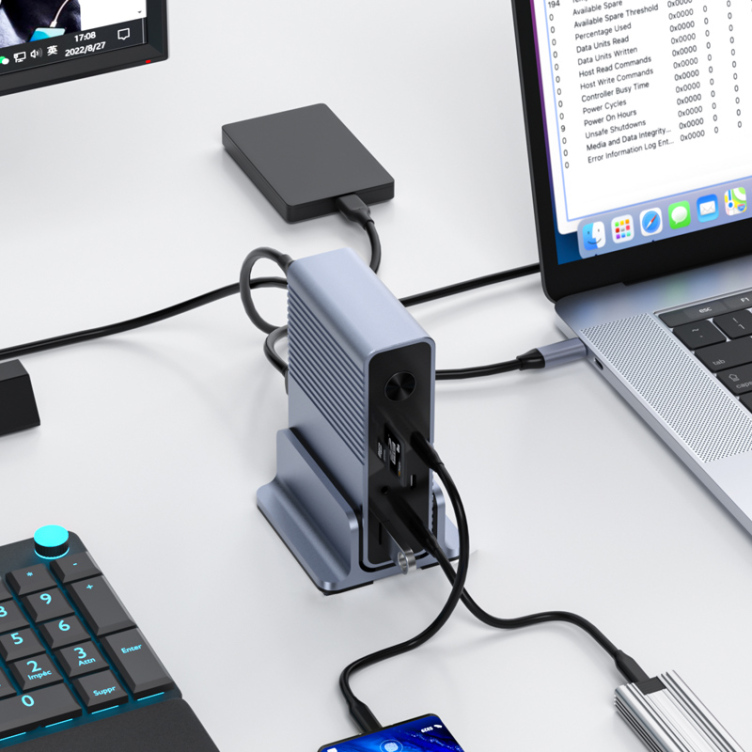

In this dock, we can meet almost any office requirements, Windows PC support MST and SST screen extension mode, MacOS PC support SST screen extension mode. Due to the protocol of the fast charge technology, 100 watts of fast charge can bring 80 watts of charge to the computer, and sufficient power supply can meet the continuous and stable use of multi-screen expansion. Of course, it's also perfect for Linux PC.

USB C Docking Station

Product Features

  • PD 3.0 100W
  • HDMI display up to 4K@60Hz, another up to 4K@30Hz, DP display up to 4K@60Hz
  • SD 3.0 maximum of 104 MB/s
  • 3x USB 3.1 5Gbps Type-A  ports
  • 3x USB 3.2 10Gbps Type-C ports
  • 1x Up to 1000Mbps Gigabit Ethernet port
  • 3.5mm audio&mic Jack
USB C Docking Station

Product Interface

1, Key Switch

2, Card Reader 3.0

3, Combination Audio/Mic Jack

4, USB-C 3.2 Gen2 10Gbps

5, USB-A 3.1 Gen1 5Gbps

6, HDMI 4K@60Hz,4K@30Hz

7, USB-A 3.1 Gen1 5Gbps

8, DisPlay Prot 4K@60Hz

9, RJ45 Gigabit Ethernet

10, Power In, Device Host
