After multiple updates, USB standards and their specifications have become quite challenging to understand. This article will answer questions like "What are the differences between USB 3.2 Gen 1 and Gen 2?" and explore which standard is most suitable for your system, helping you gain a comprehensive understanding of USB standards.
USB 3.2 Gen 1 signals at up to 5Gbps, while USB 3.2 Gen 2 signals at up to 10Gbps. Neither name guarantees connector shape, charging power, or display support.
The Evolution of USB 3.0
USB 3.0 was released in 2008, marking the third major revision of the USB standard. Compared to USB 2.0, whose specification was released in 2000 and whose High-Speed mode signals at up to 480 Mbit/s, USB 3.0 represented a significant leap forward. The USB 3.2 specification later absorbed the earlier USB 3.x specifications. As a result, the legacy USB 3.0 and USB 3.1 Gen 1 labels refer to the 5Gbps mode now technically identified as USB 3.2 Gen 1.
The USB Implementers Forum (USB-IF) supports USB adoption, develops compliance testing and certification programs, and publishes consumer-facing branding guidance. Its goal in standardizing naming and specifications is to make it easier for developers and manufacturers to access relevant information, ensuring correct product development and backward compatibility. Additionally, USB-IF publishes naming and logo guidance, while certified USB logos are reserved for qualifying products that pass the applicable compliance process.
Speed Differences between USB 3.2 Gen 1 and Gen 2
For buyers comparing these two labels, the main advertised difference is the maximum signaling rate. USB 3.2 Gen 1 signals at up to 5Gbit/s, while USB 3.2 Gen 2 signals at up to 10Gbit/s; real file-transfer throughput is lower and depends on the complete connection. Older USB-IF guidance used names such as SuperSpeed USB and SuperSpeed USB 10Gbps. Current consumer-facing guidance instead recommends the clearer performance labels USB 5Gbps and USB 10Gbps. The technical terms USB 3.2 Gen 1 and USB 3.2 Gen 2 remain useful when discussing the specification, but terms such as SuperSpeed+ are not intended for consumer-facing product messaging.

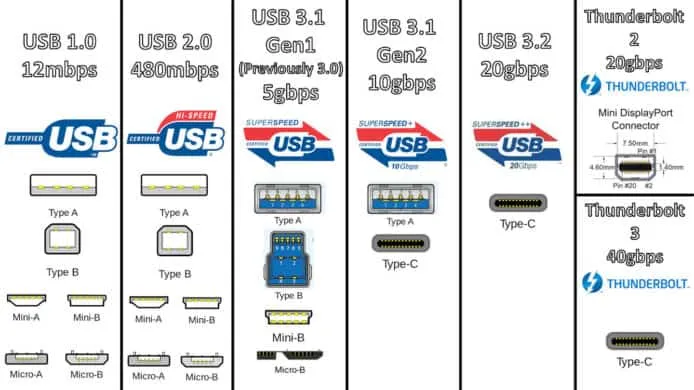

| Common name | Clear performance label | Maximum signaling rate | Connector note |
|---|---|---|---|
| USB 3.0 / USB 3.1 Gen 1 / USB 3.2 Gen 1 | USB 5Gbps | 5Gbps | May use USB-A or USB-C |
| USB 3.1 Gen 2 / USB 3.2 Gen 2 | USB 10Gbps | 10Gbps | May use USB-A or USB-C |
Innovation of USB 3.2 Gen 2x2
Published in September 2017, the USB 3.2 specification added dual-lane operation. USB 3.2 Gen 2x2 uses two 10Gbps lanes to provide a maximum signaling rate of 20Gbps, while the specification identifies 5Gbps, 10Gbps, and 20Gbps transfer rates.
USB 3.2 Gen 2x2 relies on the multi-lane design of USB Type-C to reach 20Gbps. However, USB-C describes the connector, not a guaranteed data rate or charging level. A USB-C product may support USB 2.0, USB 3.2, USB4, and/or USB Power Delivery, so its stated capabilities must be checked.
New Breakthroughs with USB4
The next major advancement in USB technology is USB4. USB4 uses the USB Type-C connector and supports multiple performance levels rather than one fixed 40Gbit/s rate. Current consumer-facing labels include USB 20Gbps, USB 40Gbps, and USB 80Gbps. The architecture supports interoperability with Thunderbolt 3, but product-level compatibility depends on the host, device, cable, and applicable requirements. USB4 increases available bandwidth and dynamically shares a high-speed link among active data and display protocol flows.
Several key design features of USB4 include:
- Enabling multiple data and display protocols to share a single high-speed USB-C connection.
- Backward compatibility with earlier USB generations, with each connection operating at the best mutually supported capability; Thunderbolt 3 interoperability additionally depends on the participating products and cable.
- Defining port functions to provide a predictable and consistent user experience.
- Enhancing host flexibility to allocate bandwidth among active data and display protocols according to system requirements.
USB and its specifications have made significant progress since their initial introduction and will continue to evolve in the future. In short, USB 3.2 Gen 1 and Gen 2 are most clearly distinguished by their 5Gbps and 10Gbps signaling rates. Both are designed for backward compatibility with earlier USB products, although the connection operates at the lowest mutually supported speed and still depends on compatible connectors and cables. If you plan to upgrade your storage solution, don't forget to check the compatibility of your host device! In the future, with the introduction of new-generation USB standards and the transition to USB-C, there will be even more significant improvements.
Frequently Asked Questions
Is USB 3.0 the same as USB 3.2 Gen 1?
For 5Gbps product comparisons, yes. The name changed from USB 3.0 to USB 3.1 Gen 1 and then USB 3.2 Gen 1, although the complete specifications are not identical.
What is the main difference between USB 3.2 Gen 1 and Gen 2?
Their advertised signaling rates are 5Gbps and 10Gbps. These labels do not guarantee connector type, charging power, display support, or actual file-transfer speed.
Does a USB-C port guarantee USB 3.2 Gen 2 speed?
No. USB-C describes the connector, so check the product specification for its data rate, charging, and display capabilities.
Will USB 3.2 Gen 2x2 run at 20Gbps on any USB-C port?
No. The host, device, and cable must all support USB 3.2 Gen 2x2. If one part supports a lower rate, the connection uses the lower shared capability.
