USB Transmission Speed Analysis: Versions, Influencing Factors, and Device Selection
In the field of modern data transmission, Universal Serial Bus (USB) technology serves as a cornerstone. Over the years, it has continuously enabled communication and power sharing between devices. With the rapid advancement of technology, USB standards have been continuously updated to fully support increasingly high - speed data transmission, making great contributions to enhancing productivity and optimizing the user experience. Next, let's delve into the mysteries of USB transmission speeds, comprehensively analyze the differences between different USB versions, and master the key tips for selecting USB devices that meet your own needs.
Factors Affecting USB Transmission Speed
Although the USB version plays a core role in determining the transmission speed, the actual performance is also influenced by many factors:
Cable Quality
The quality and specifications of USB cables have a significant impact on the transmission speed. High - quality cables with excellent shielding and structural designs are better adapted to high - speed transmissions. Especially under USB 3.0 and higher - level standards, their advantages are more prominent. For example, a high - quality shielded cable that meets the USB 3.0 standard can effectively reduce signal interference and ensure stable and high - speed data transmission.
Device Compatibility
Host devices (such as computers and laptops) and peripheral devices (such as external hard drives and printers) need to jointly support the same USB standard to achieve the maximum transmission speed. Suppose a USB 3.0 device is connected to a USB 2.0 port. Limited by the port standard, the device can only operate at the USB 2.0 speed and cannot fully utilize its high - speed transmission performance.
Data Type and File Size
The type of data being transmitted also affects the speed. Compared with multiple small files, when transmitting large files, due to the additional overhead in file management, it usually takes longer. For instance, transmitting a 1GB large video file takes more time than transmitting 1000 small 1MB documents.
Host System Performance
The performance of the computer or device itself also plays an important role in the transmission speed. A faster processor, sufficient Random - Access Memory (RAM), and high - performance storage devices can significantly accelerate the data transmission process. Transferring files on a high - performance computer is often much faster than on an old - configured computer.
Connector Type

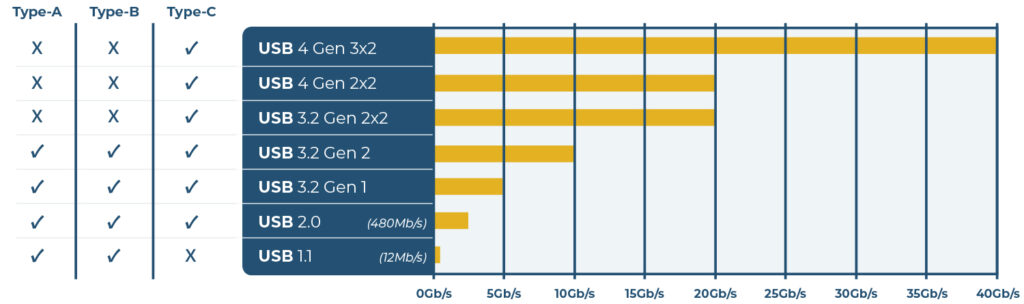

The type of USB connector also affects the maximum transmission speed. For example, a USB Type - C to USB Type - C cable has a strong transmission capacity, with a speed of up to 20 - 40Gbps; while the traditional USB Type - A connector has an upper speed limit of 10Gbps. This means that when pursuing the ultimate transmission speed, choosing the appropriate connector type is crucial.
Measuring USB Transmission Speed
USB transmission speed is measured in bits per second (bps), and the common terms are as follows:
Kbps (Kilobits per second): That is, 1,000 bits per second, often used to describe the data transmission of low - speed devices in some early stages or in specific scenarios.
Mbps (Megabits per second): 1,000,000 bits per second, which is relatively common in daily data transmission, such as the data transmission speed of ordinary network connections and some USB 2.0 devices.
Gbps (Gigabits per second): 1,000,000,000 bits per second, which is a common unit for high - speed data transmission. The transmission speeds of USB 3.0 and above - standard devices are often measured by this unit.
It should be noted that due to the various influencing factors mentioned above, the actual transmission speed is usually lower than the theoretical maximum value. For example, a USB 3.0 device with a theoretical speed of up to 5Gbps may only reach about 3Gbps in actual use due to factors such as device compatibility and cable quality.

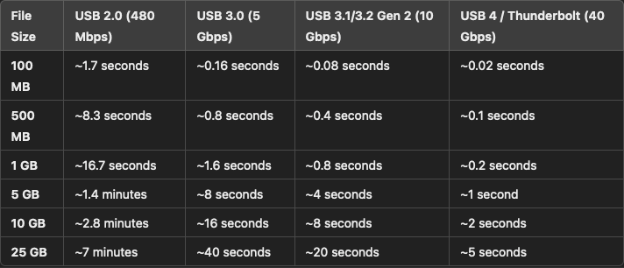

To help you intuitively feel the different transmission rates, here are some examples of the file transfer times of USB devices at different speeds: When transmitting a 5GB - sized movie file, if a USB 3.1 Gen1 device is used, it theoretically takes a minimum of 10 seconds; while using a USB 3.1 Gen2 device, it only takes about 4.13 seconds, and the transmission efficiency is greatly improved. Of course, in actual transmission, due to factors such as storage particles, it is difficult to reach the theoretical fastest speed.
Selecting Suitable USB Devices According to Requirements
When selecting USB devices, you may refer to the following key points to ensure the best performance of the devices:
Compatibility Considerations
Be sure to confirm that the computer and peripheral devices support the same USB standard. Otherwise, due to standard mismatches between devices, high - speed transmission may not be achieved, and even connection instability and other problems may occur. Before purchasing a new USB device, carefully check the device manual or product parameters to confirm its compatibility with existing devices.
Investment in Cable Quality
It is recommended to choose high - quality cables that are certified and suitable for the target USB version. High - quality cables can not only ensure the transmission speed but also improve the stability and reliability of data transmission, reducing the risk of signal interference and data loss. When purchasing, choose well - known brand USB cables with quality certifications to provide a solid guarantee for data transmission.
Clarify Usage Requirements
Clearly define the main usage scenarios, such as large - file transfer, daily backup, media streaming, etc., and select devices that meet specific requirements accordingly. If you often need to transfer large - capacity files, you should give priority to devices that support high - speed transmission, such as USB 3.0 and above - standard devices; if you only occasionally connect low - speed devices such as mice and keyboards, USB 2.0 - standard devices can meet the needs.
Since its inception, USB technology has made great leaps forward, and the transmission speed has been continuously increasing, precisely meeting people's growing data processing needs. Deeply understanding various USB versions, their transmission speed characteristics, and the key factors affecting performance helps us make informed decisions when purchasing USB devices. Whether you are an ordinary user or a technology enthusiast, choosing the right USB solution can greatly improve work efficiency and make the work process more smooth and convenient.
